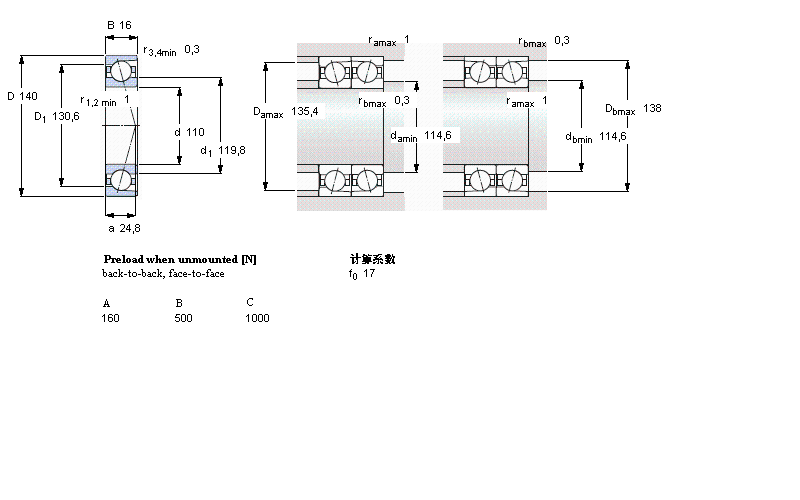

型号：71822CD/P4A
订购电话：15811153859
| 角接触球轴承, 精密, CD, contact angle 15°, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| | |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| | |||||||||||
| 110 | 140 | 16 | 31,9 | 40,5 | 1,53 | 8000 | 13000 | 0,505 | 71822 CD/P4A | SEA110 7CE1 | |
