型号:S71922ACD/P4A
订购电话:15811153859
角接触球轴承, 精密, S .. ACD, sealed, contact angle 25° | |||||||||||
公差 , see also text / text 718 (SEA) series | |||||||||||
预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
Recommended fits, shafts, housings | |||||||||||
轴和轴承座公差 | |||||||||||

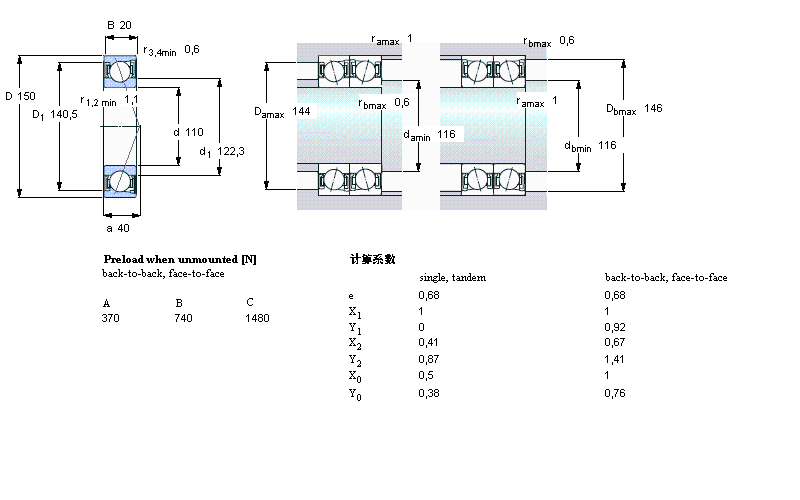

主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
d | D | B | C | C0 | Pu | ||||||
mm | kN | kN | r/min | kg | - | ||||||
110 | 150 | 20 | 58,5 | 68 | 2,55 | 7500 | - | 0,86 | S71922 ACD/P4A | - |
