型号：7013CD/P4A
订购电话：15811153859
| 角接触球轴承, 精密, CD, contact angle 15° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
 | |||||||||||

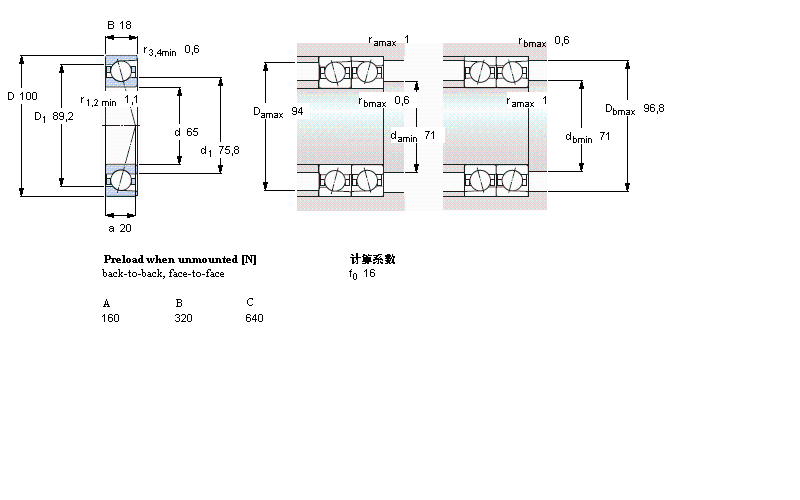

| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| | |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| | |||||||||||
| 65 | 100 | 18 | 41,6 | 37,5 | 1,6 | 14000 | 22000 | 0,42 | 7013 CD/P4A | - | |
