型号：N1011KTNHA/HC5SP
订购电话：15811153859
| 圆柱滚子轴承,单列, 精密, 陶瓷混合轴承, PEEK | ||||||||||
| 公差 , 参见文字 | ||||||||||
| 径向内部间隙, 圆锥型内孔 , 参见文字 | ||||||||||
| 推荐配合, shafts, housings | ||||||||||
| 轴和轴承座公差 | ||||||||||
 | ||||||||||

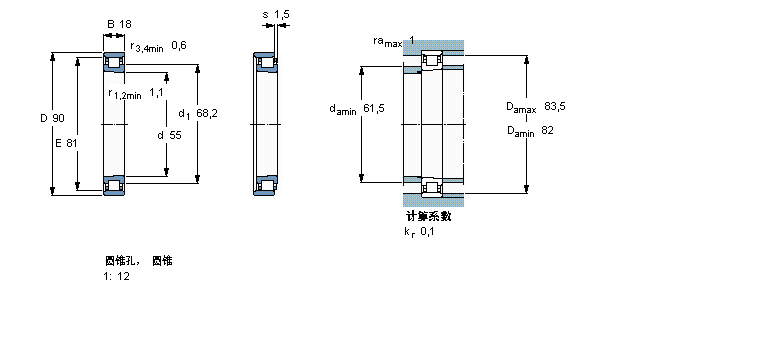

| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | |||||
| 动态 | 静态 | 当润滑与 | ||||||||
| 油脂 | 滴油润滑 | |||||||||
| d | D | B | C | C0 | Pu | |||||
| | ||||||||||
| mm | kN | kN | r/min | kg | - | |||||
| | ||||||||||
| 55 | 90 | 18 | 39,1 | 46,5 | 5,5 | 19000 | 26000 | 0,35 | N 1011 KTNHA/HC5SP | |
